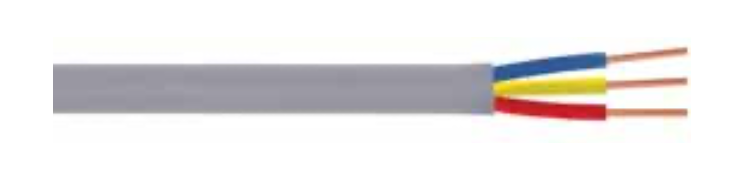

PVC Insulated PVC Sheathed Flat Twin and Three Core Cable 300/500V
MESC flat PVC twin & 3-core cable 300/500V, 1.0–16mm², Class 1/2 copper. Fixed installation in walls, plaster. Dry/damp locations. UAE supplier.
MESC PVC Insulated PVC Sheathed Flat Twin and Three Core Cable is designed for dry or damp locations for fixed installation, suitable for installation in walls, on boards or embedded in plaster. Available in 2-core (Red & Black) and 3-core (Red, Yellow, Blue) configurations with conductor sizes from 1.0mm² to 16mm². Solid (Class 1) and stranded (Class 2) conductors available. Grey PVC outer sheath. Temperature range -25°C to 70°C. Provides both current-carrying capacity in-ground and in-air ratings.
| Specification | Details |
|---|---|
| Conductor | Plain Annealed Copper Class 1 or Class 2 per IEC 60228 |
| Cores | 2 or 3 |
| Sizes | 1.0, 1.5, 2.5, 4, 6, 10, 16 mm² |
| Insulation | 0.6–1.0mm |
| Sheath | 0.9–1.3mm |
| Overall Dia (LxW) range | 6.8×4.4mm (2C/1mm²) to 24.5×10.1mm (3C/16mm²) |
| Conductor Resistance at 20°C | 18.1 Ω/km (1mm²) to 1.15 Ω/km (16mm²) |
| Current Capacity (20°C in-ground) | 32A (1.5mm²) to 116A (2C/16mm²) |
| Current Capacity (30°C in-air) | 20A (1.5mm²) to 89A (2C/16mm²) |
| Voltage | 300/500 V |
| Temperature | -25°C to 70°C |
| Available Sizes / Core Configurations | 2 core: 1.0, 1.5, 2.5, 4, 6mm² (Class 1) + 1.5, 2.5, 4, 6, 10, 16mm² (Class 2) 3 core: 1.0, 1.5, 2.5, 4, 6, 10, 16mm² |
| Conductor Type | Plain Annealed Copper – Class 1 (solid) or Class 2 (stranded) per IEC 60228 |
| Insulation | PVC Type TI-1 per BS EN 50363-3 |
| Sheath / Outer Jacket | PVC Type TM-1 per BS EN 50363-4.1 – Grey standard |
| Voltage Rating | 300/500 V |
| Standard / Compliance | BS EN50252-2-31, IEC 60228 |
| Color Code | 2 core: Red & Black 3 core: Red, Yellow (centre), Blue Sheath: Grey |
| Standard Packing | Coil / Reel / Drum in Metres, Yards or Feet |
| Typical Applications | Fixed installation in walls, embedded in plaster, dry/damp residential and commercial buildings, general fixed wiring on boards |
