Power & Control Multi Core Screened Cable CU/XLPE/CUT/PVC 600/1000V
MESC CU/XLPE/CUT/PVC screened power & control cable 600/1000V, multi core, copper tape screen, IEC 60502-1. EMI shielding, industrial. UAE supplier.

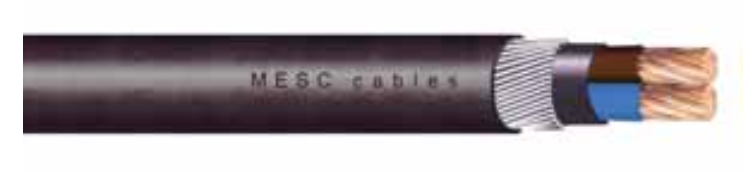

MESC Power and Control Multi Core Screened Cable (CU/XLPE/CUT/PVC, IEC 60502-1) provides electromagnetic shielding for sensitive signal and power circuits in industrial and commercial environments. A 100% coverage copper tape screen (50µm, applied helically with suitable overlap) is applied over the FR PVC inner sheath before the final PVC outer jacket. Suitable for indoor and outdoor use in cable ducts, cable trays, conduits or underground in power and switching stations, distribution systems, industrial plants and commercial buildings. XLPE insulation, Class 2 stranded copper conductors, black FR PVC outer sheath.
| Specification | Details |
|---|---|
| Conductor | Stranded Annealed Plain Circular Copper Class 2 per IEC 60228 |
| Insulation | XLPE per IEC 60502-1 |
| Inner Sheath | FR PVC Black |
| Screen | Copper tape 50µm, helically applied, 100% coverage |
| Outer Sheath | FR PVC Type ST-2 per IEC 60502-1 – Black |
| Voltage | 600/1000 V |
| Temp | -5°C to 90°C |
| Voltage Withstand | 3500 V AC / 8400 V DC (5 min) |
| Min Bending Radius | 12x OD |
| Max SC Temp | 250°C (5 sec) |
| Flame Retardant | IEC 60332-1 |
| Available Sizes / Core Configurations | 2–5 core (sizes available on request; standard range similar to unarmoured IEC 60502-1) |
| Conductor Type | Stranded Annealed Plain Circular Copper – Class 2 per IEC 60228 |
| Insulation | Cross Linked Polyethylene (XLPE) per IEC 60502-1 – 90°C |
| Sheath / Outer Jacket | FR PVC inner sheath + Copper tape screen (50µm, 100%) + FR PVC Type ST-2 outer sheath – Black |
| Voltage Rating | 600/1000 V |
| Standard / Compliance | IEC 60502-1, IEC 60332-1 |
| Color Code | 2C: Red/Black 3C: Red/Yellow/Blue 4C: Red/Yellow/Blue/Black 5C+: Black numbered |
| Standard Packing | Drum; standard and custom lengths |
| Typical Applications | EMI-sensitive industrial environments, power stations, process control, instrumentation wiring, VFD/drive cabling, commercial buildings with shielding requirements |
