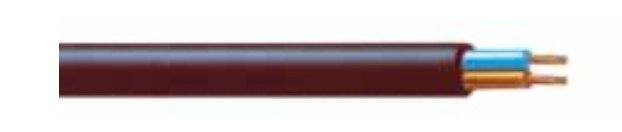

Multi Core Flexible PVC/PVC Cable – Ordinary Duty 300/500V (H05VV-F) 70°C & 90°C
MESC ordinary duty flexible PVC/PVC multi core cable 300/500V, 2–5 core, 0.75–4mm², 70°C & 90°C. H05VV-F. Domestic appliances, offices. UAE supplier.
MESC Multi Core Flexible PVC Insulated PVC Sheathed Cable (Ordinary Duty, 300/500V) is suitable for use in dry or damp locations for medium duties in domestic premises, kitchens and offices. Ideal for washing machines, refrigerators, cooking and heating appliances (provided the cable does not contact hot parts). Available in 2, 3, 4 and 5 core configurations with conductor sizes from 0.75mm² to 4mm². Class 5 flexible copper. Cores twisted with fillers. White PVC outer sheath standard (custom colors available). CENELEC code H05VV-F (70°C ordinary duty) / H05V2V2-F (90°C).
| Specification | Details |
|---|---|
| Conductor | Flexible Copper Class 5 per IEC 60228 |
| Cores | 2, 3, 4, 5 |
| Sizes | 0.75, 1.0, 1.5, 2.5, 4.0 mm² |
| Insulation Thickness | 0.6mm (0.75–1.0mm²), 0.7mm (1.5mm²), 0.8mm (2.5–4mm²) |
| Sheath Thickness | 0.8–1.4mm |
| Overall Dia range | 6.5mm (2C/0.75mm²) to 13.8mm (5C/4mm²) |
| Weight range | 61–356 kg/km |
| Current Capacity (30°C) | 6A (0.75mm²), 10A (1.0mm²), 16A (1.5mm²), 25A (2.5mm²), 32A (4mm²) |
| Max Short Circuit Temp | 160°C (5 sec) |
| Voltage | 300/500 V |
| Flame Retardant | IEC 60332-1 |
| Ambient correction | 0.96@35°C, 0.92@40°C, 0.87@45°C, 0.71@50°C, 0.50@55°C |
| Available Sizes / Core Configurations | 2 core: 0.75, 1.0, 1.5, 2.5, 4mm² 3 core: 0.75, 1.0, 1.5, 2.5, 4mm² 4 core: 0.75, 1.0, 1.5, 2.5, 4mm² 5 core: 0.75, 1.0, 1.5, 2.5, 4mm² |
| Conductor Type | Plain Annealed Flexible Copper – Class 5 per IEC 60228 |
| Insulation | PVC Type TI 2 (70°C) or PVC Type TI 3 (90°C) per BS EN 50363-3 |
| Sheath / Outer Jacket | PVC Type TM 2 (70°C) or TM 3 (90°C) per BS EN 50363-4-1 – White standard |
| Voltage Rating | 300/500 V |
| Standard / Compliance | BS EN 50525-2-11, IEC 60227-5, IEC 60332-1 |
| Color Code | 2C: Blue/Brown 3C: Green-Yellow/Blue/Brown 4C: Green-Yellow/Black/Blue/Brown 5C: Green-Yellow/Black/Blue/Brown/Black |
| Standard Packing | Coil / Reel / Drum in Metres, Yards or Feet |
| Typical Applications | Domestic appliances (washing machines, refrigerators), kitchens, offices, medium-duty flexible connections, cooking and heating equipment |
