Multi Core Flexible PVC/PVC Cable – Light Duty 300/300V (H03VV-F) 70°C & 90°C
MESC light duty multi core flexible PVC/PVC cable 300/300V, 2-4 core, 0.5–0.75mm², 70°C & 90°C. H03VV-F. Switchgear, instrument panel wiring. UAE supplier.

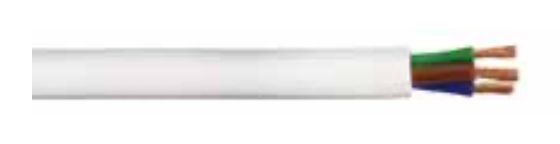

MESC Multi Core Flexible PVC Insulated PVC Sheathed Cable (Light Duty) is designed for wiring of switch, control, metering, relay and instrument panels of power switchgear, and for internal connections in rectifier equipment, motor starters and controllers. Available in 2, 3 and 4 core configurations with 0.50mm² and 0.75mm² cross sections. Class 5 flexible copper conductor per IEC 60228. Cores twisted together with fillers to form round assembly. White PVC outer sheath (other colors on request). CENELEC code H03VV-F (70°C) / H03V2V2-F (90°C).
| Specification | Details |
|---|---|
| Conductor | Plain Annealed Flexible Copper Class 5 per IEC 60228 |
| Cores | 2, 3, 4 |
| Sizes | 0.50mm², 0.75mm² |
| Insulation Thickness | 0.5mm |
| Sheath Thickness | 0.6mm |
| Overall Dia | 5.2mm (2C/0.5mm²) to 6.6mm (4C/0.75mm²) |
| Conductor Resistance at 20°C | 39.0 Ω/km (0.5mm²), 26.0 Ω/km (0.75mm²) |
| Current Capacity (30°C) | 3A (0.5mm²), 6A (0.75mm²) |
| Max Short Circuit Temp | 160°C (5 sec max) |
| Voltage | 300/300 V |
| Flame Retardant | IEC 60332-1 |
| Color code – 2 core | Blue & Brown |
| 3 core | Green/Yellow, Blue & Brown |
| 4 core | Green/Yellow, Black, Blue & Brown |
| Available Sizes / Core Configurations | 2 core: 0.50mm², 0.75mm² 3 core: 0.50mm², 0.75mm² 4 core: 0.50mm², 0.75mm² |
| Conductor Type | Plain Annealed Flexible Copper – Class 5 per IEC 60228 |
| Insulation | PVC Type TI 2 (70°C) or PVC Type TI 3 (90°C) per BS EN 50363-3 |
| Sheath / Outer Jacket | PVC Type TM 2 (70°C) or TM 3 (90°C) per BS EN 50363-4-1 – White (other colors on request) |
| Voltage Rating | 300/300 V |
| Standard / Compliance | BS EN 50525-2-11, IEC 60332-1 |
| Color Code | 2C: Blue/Brown 3C: Green-Yellow/Blue/Brown 4C: Green-Yellow/Black/Blue/Brown |
| Standard Packing | Coil / Reel / Drum in Metres, Yards or Feet |
| Typical Applications | Switchgear panel wiring, instrument panels, relay panels, motor starters, controller internal connections, rectifier equipment |
