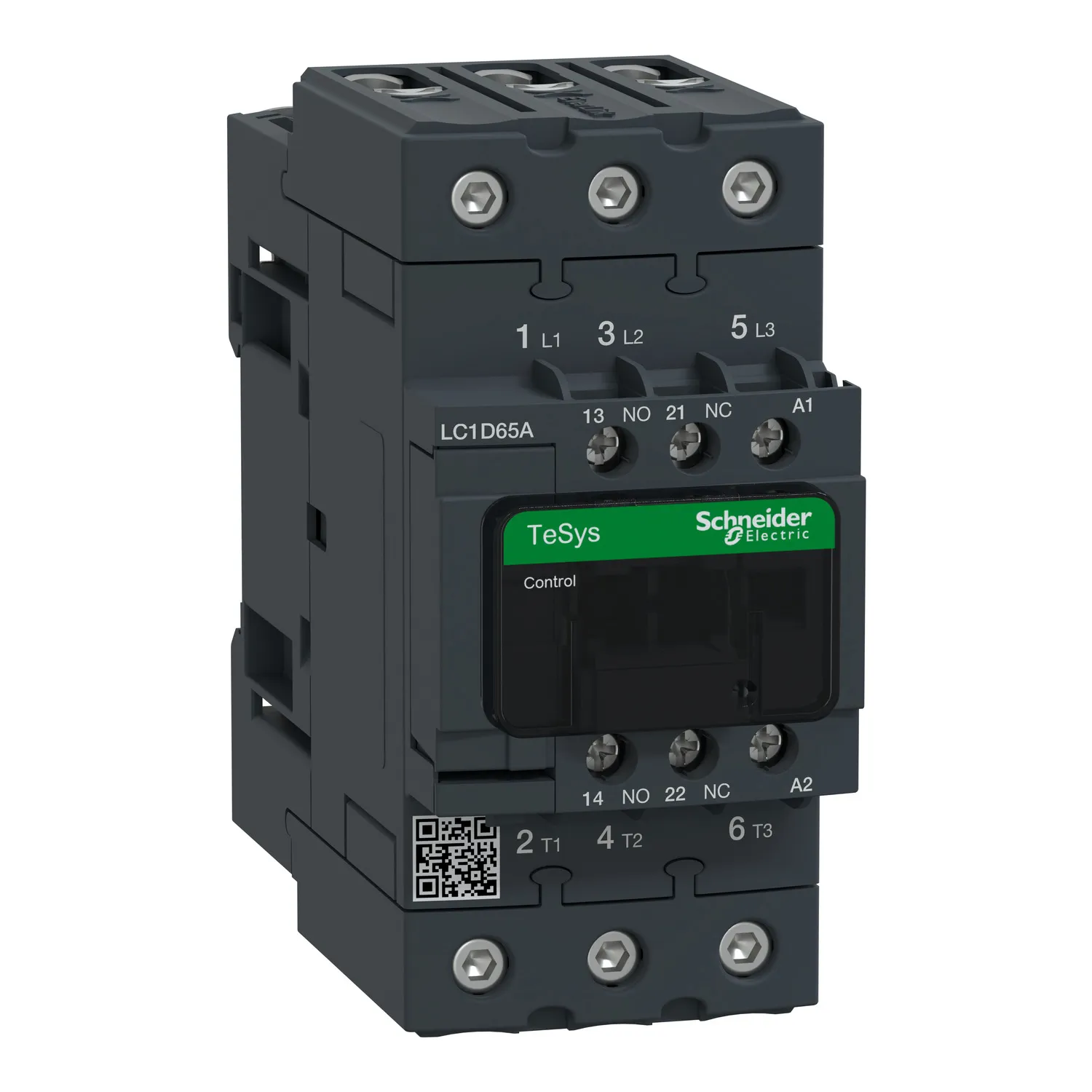

LC1D65
Heavy Duty Motors, Crane Control Systems, Elevator Drives, Large Pumping Systems, Industrial Compressors, Manufacturing Production Lines, Mining Equipment, Port Machinery, Heavy Processing, Material Handling
Schneider LC1D65 Industrial Contactor 65A – Professional TeSys Deca Range | Superior Arc Suppression Technology | Long Service Life Design | Reversing Duty Rated | Temperature Compensated Operation | Add-On Block System Compatible | Marine/Offshore Certified GL/DNV/RINA/BV/LROS
Technical Specifications
| Specification | Details |
|---|---|
| Rating | 65A AC-3 |
| Poles | 3P |
| Voltage | Up to 690V |
| Power | 30HP @230V, 60HP @480V, 75HP @600V |
| Frame | 55mm |
| Elec Life | 1M cycles |
| Temp | -5 to 55°C |
| Marine | Multi-certified |
| Reversing | Yes |
