LC1D12
Industrial Motors 3-7.5HP, Manufacturing Plants, Compressor Control, Fan Motors, Blower Systems, Processing Equipment, Elevator Control, Crane Motors, Material Handling, Commercial HVAC, Automotive Manufacturing

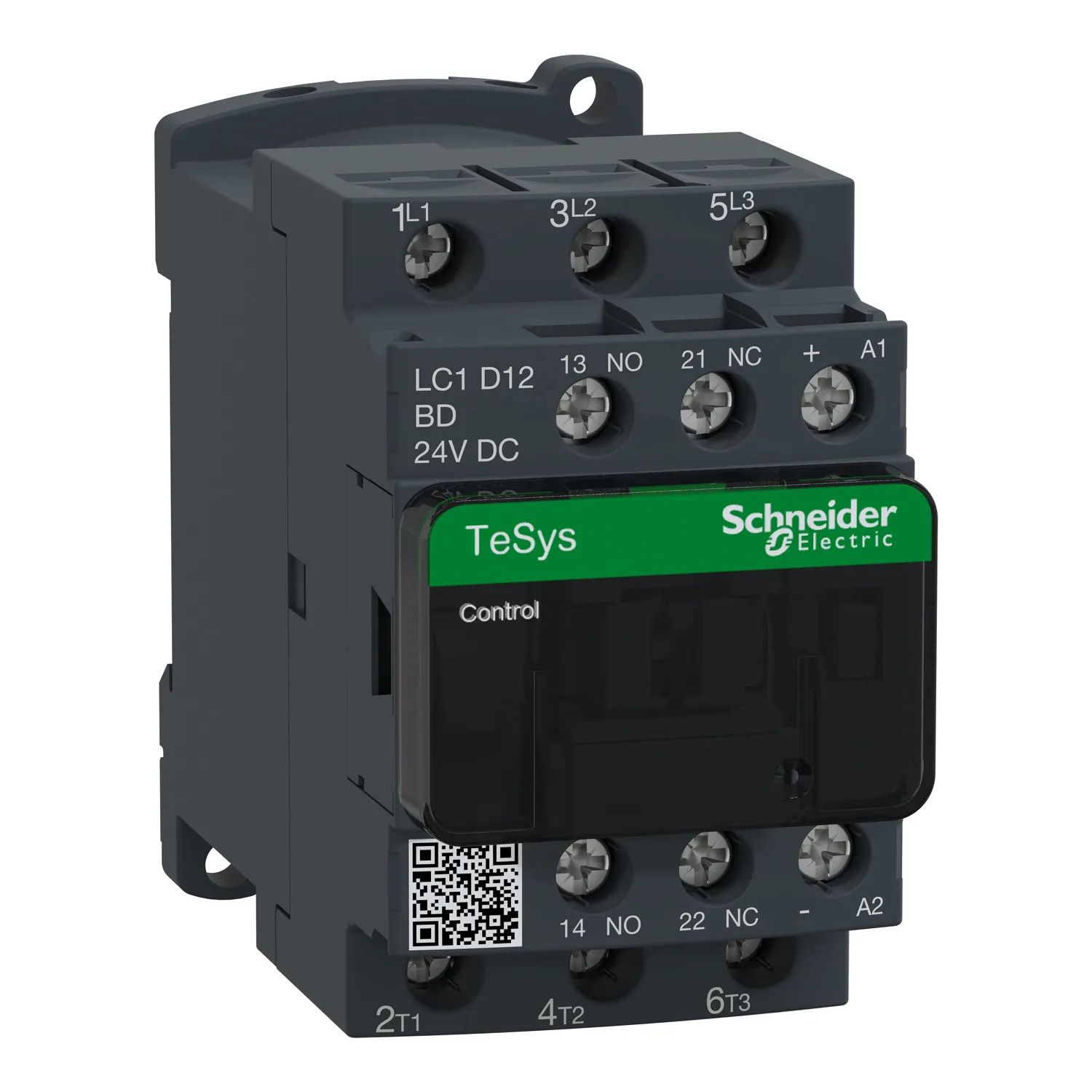

TeSys D LC1D12 Industrial Contactor 12A – Heavy Duty Motor Starter | Schneider Genuine Part | Thermal Magnetic Protection Compatible | Reversing Duty Capable | Wide Operating Temperature -5°C to +55°C | Low Power Coil Consumption | Vibration Resistant Design | Global Safety Approvals
Technical Specifications
| Specification | Details |
|---|---|
| Rating | 12A AC-3 |
| Poles | 3P |
| Voltage | Up to 690V |
| Power | 3HP @230V, 7.5HP @480V, 10HP @600V |
| Coil | 24-440V AC/DC |
| Frame | 45mm |
| Life | 10M mechanical |
| Temp Range | -5 to 55°C |
| Shock Resistance | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
