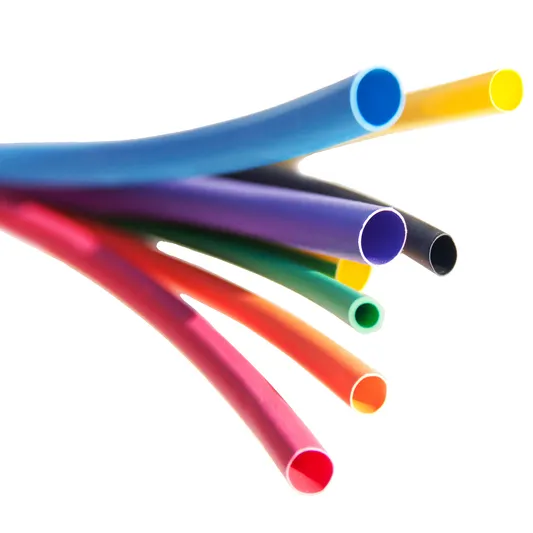

G-5 General Purpose, Flame Retardant Polyolefin Tubing

G-5 General Purpose, Flame Retardant Polyolefin Tubing

This high-quality heat shrink tubing is widely used across industrial and commercial applications, providing reliable electrical insulation and protection for in-line components, disconnect terminals, and wire splices. It is ideal for bundling wires and offers easy identification through color-coded wires, cables, terminals, and components.

Key Features:

Approvals & Standards: UL224 certified (File No. E255532), rated 125°C, VW-1, 600V.

Temperature Range: Operates safely from -55°C to 125°C. Minimum shrink temperature: 70°C; fully recovered at 110°C.

Color Options: Available in standard colors including black, white, red, blue, yellow, and green. Custom colors and sizes available upon request.

Sizes: 35mm to 180mm (blank tube, without printing), suitable for a wide range of applications.

Perfect for electrical insulation, component protection, wire bundling, and color-coded identification, this heat shrink tubing ensures durability, safety, and easy installation in any electrical or industrial setup.

Category
Enquire on WhatsApp



Part Number Nominal Size As Supplied (mm) After Recovered (mm) Standard Length (Meter)
I.D W.T I.D (max) W.T (min)
G5-0008 0.8 1.0 ± 0.2 0.15 ± 0.05 0.55 0.25 200
G5-0010 1.0 1.5 ± 0.3 0.20 ± 0.05 0.60 0.33 200
G5-0015 1.5 2.0 ± 0.3 0.20 ± 0.05 0.75 0.36 200
G5-0020 2.0 2.5 ± 0.3 0.20 ± 0.05 1.00 0.44 200
G5-0025 2.5 3.0 ± 0.3 0.25 ± 0.05 1.25 0.44 200
G5-0030 3.0 3.5 ± 0.3 0.25 ± 0.05 1.50 0.44 200
G5-0035 3.5 4.0 ± 0.3 0.25 ± 0.05 1.75 0.44 200
G5-0040 4.0 4.5 ± 0.3 0.25 ± 0.05 2.00 0.44 200
G5-0045 4.5 5.0 ± 0.3 0.25 ± 0.05 2.25 0.44 100
G5-0050 5.0 5.5 ± 0.3 0.25 ± 0.05 2.50 0.56 100
G5-0060 6.0 6.5 ± 0.3 0.28 ± 0.05 3.00 0.56 100
G5-0070 7.0 7.6 ± 0.3 0.30 ± 0.07 3.50 0.56 100
G5-0080 8.0 8.6 ± 0.3 0.30 ± 0.07 4.00 0.56 100
G5-0090 9.0 9.6 ± 0.3 0.30 ± 0.07 4.50 0.56 100
G5-0100 10.0 10.7 ± 0.4 0.30 ± 0.07 5.00 0.56 100
G5-0110 11.0 11.7 ± 0.4 0.30 ± 0.07 5.50 0.56 100
G5-0120 12.0 12.7 ± 0.4 0.30 ± 0.07 6.00 0.56 100
G5-0130 13.0 13.7 ± 0.4 0.35 ± 0.08 6.50 0.69 100
G5-0140 14.0 14.7 ± 0.4 0.35 ± 0.08 7.00 0.69 100
G5-0150 15.0 15.7 ± 0.5 0.35 ± 0.08 7.50 0.69 100
G5-0160 16.0 16.7 ± 0.5 0.35 ± 0.08 8.00 0.69 100
G5-0170 17.0 17.7 ± 0.5 0.35 ± 0.08 8.50 0.77 100
G5-0180 18.0 19.0 ± 0.5 0.40 ± 0.10 9.00 0.77 100
G5-0200 20.0 21.0 ± 0.5 0.40 ± 0.10 10.0 0.77 100
G5-0220 22.0 23.0 ± 0.5 0.40 ± 0.10 11.0 0.77 100
G5-0250 25.0 26.0 ± 1.0 0.45 ± 0.10 12.5 0.87 50
G5-0280 28.0 29.0 ± 1.0 0.45 ± 0.10 14.0 0.87 50
G5-0300 30.0 31.5 ± 1.0 0.45 ± 0.10 15.0 0.87 50
G5-0350 35.0 36.5 ± 1.0 0.50 ± 0.10 17.5 0.97 50
G5-0400 40.0 41.5 ± 1.0 0.50 ± 0.10 20.0 0.97 50
G5-0450 45.0 46.0 ± 0.7 0.50 ± 0.15 22.5 0.85 25
G5-0500 50.0 51.5 ± 1.0 0.50 ± 0.10 25.0 0.97 25
G5-0600 60.0 63.0 ± 3.0 0.60 ± 0.15 30.0 1.17 25
G5-0700 70.0 71.0 ± 3.0 0.60 ± 0.15 35.0 1.17 25
G5-0800 80.0 81.0 ± 3.0 0.65 ± 0.15 40.0 1.20 25
G5-0900 90.0 91.0 ± 3.0 0.75 ± 0.15 45.0 1.30 25
G5-1000 100 101.0 ± 3.0 0.75 ± 0.15 50.0 1.30 25
G5-1200 120 121.0 ± 4.0 0.80 ± 0.20 60.0 1.40 15
G5-1500 150 151.0 ± 4.0 0.80 ± 0.20 75.0 1.50 15
G5-1800 180 181.0 ± 4.0 0.85 ± 0.20 90.0 1.60 15

Property Specification Requirement Test Method Typical Value
Longitudinal change (150℃ , 3min) -10% ~ 10% ASTM D 2671 Pass
Tensile strength (500mm/min) ≧10.4MPa ASTM D 638 ≧11.4MPa
Elongation at break (500mm/min) ≧200% ASTM D 638 ≧400%
Tensile strength after aging (158℃ / 168 hrs.) More than 70% ASTM D 638 ≧80%
Elongation after aging (158℃ /168 hrs.) ≧100% ASTM D 638 ≧200%
Heat shock (200℃ /4 hrs.) No cracking ASTM D 2671 Pass
Cold bend (-30℃ /1 h.) No cracking ASTM D 2671 Pass
Dielectric voltage (AC2500V/60S) No breakdown UL224 Pass
Volume resistance ≧1014 Ω.cm ASTM D 876 ≧1014 Ω.cm
Dielectric strength ≧19.7 KV/mm ASTM D 2671 22 KV/mm
Flammability Pass UL224 Pass

  • Shrinkage Ratio: 2:1
  • Very flexible, highly flame retardant
  • Resistant to common fluids and solvents
  • Excellent physical, chemical, and electrical properties
  • Meet RoHS

Specification
Part Number Nominal Size As Supplied (mm) After Recovered (mm) Standard Length (Meter)
I.D W.T I.D (max) W.T (min)
G5-0008 0.8 1.0 ± 0.2 0.15 ± 0.05 0.55 0.25 200
G5-0010 1.0 1.5 ± 0.3 0.20 ± 0.05 0.60 0.33 200
G5-0015 1.5 2.0 ± 0.3 0.20 ± 0.05 0.75 0.36 200
G5-0020 2.0 2.5 ± 0.3 0.20 ± 0.05 1.00 0.44 200
G5-0025 2.5 3.0 ± 0.3 0.25 ± 0.05 1.25 0.44 200
G5-0030 3.0 3.5 ± 0.3 0.25 ± 0.05 1.50 0.44 200
G5-0035 3.5 4.0 ± 0.3 0.25 ± 0.05 1.75 0.44 200
G5-0040 4.0 4.5 ± 0.3 0.25 ± 0.05 2.00 0.44 200
G5-0045 4.5 5.0 ± 0.3 0.25 ± 0.05 2.25 0.44 100
G5-0050 5.0 5.5 ± 0.3 0.25 ± 0.05 2.50 0.56 100
G5-0060 6.0 6.5 ± 0.3 0.28 ± 0.05 3.00 0.56 100
G5-0070 7.0 7.6 ± 0.3 0.30 ± 0.07 3.50 0.56 100
G5-0080 8.0 8.6 ± 0.3 0.30 ± 0.07 4.00 0.56 100
G5-0090 9.0 9.6 ± 0.3 0.30 ± 0.07 4.50 0.56 100
G5-0100 10.0 10.7 ± 0.4 0.30 ± 0.07 5.00 0.56 100
G5-0110 11.0 11.7 ± 0.4 0.30 ± 0.07 5.50 0.56 100
G5-0120 12.0 12.7 ± 0.4 0.30 ± 0.07 6.00 0.56 100
G5-0130 13.0 13.7 ± 0.4 0.35 ± 0.08 6.50 0.69 100
G5-0140 14.0 14.7 ± 0.4 0.35 ± 0.08 7.00 0.69 100
G5-0150 15.0 15.7 ± 0.5 0.35 ± 0.08 7.50 0.69 100
G5-0160 16.0 16.7 ± 0.5 0.35 ± 0.08 8.00 0.69 100
G5-0170 17.0 17.7 ± 0.5 0.35 ± 0.08 8.50 0.77 100
G5-0180 18.0 19.0 ± 0.5 0.40 ± 0.10 9.00 0.77 100
G5-0200 20.0 21.0 ± 0.5 0.40 ± 0.10 10.0 0.77 100
G5-0220 22.0 23.0 ± 0.5 0.40 ± 0.10 11.0 0.77 100
G5-0250 25.0 26.0 ± 1.0 0.45 ± 0.10 12.5 0.87 50
G5-0280 28.0 29.0 ± 1.0 0.45 ± 0.10 14.0 0.87 50
G5-0300 30.0 31.5 ± 1.0 0.45 ± 0.10 15.0 0.87 50
G5-0350 35.0 36.5 ± 1.0 0.50 ± 0.10 17.5 0.97 50
G5-0400 40.0 41.5 ± 1.0 0.50 ± 0.10 20.0 0.97 50
G5-0450 45.0 46.0 ± 0.7 0.50 ± 0.15 22.5 0.85 25
G5-0500 50.0 51.5 ± 1.0 0.50 ± 0.10 25.0 0.97 25
G5-0600 60.0 63.0 ± 3.0 0.60 ± 0.15 30.0 1.17 25
G5-0700 70.0 71.0 ± 3.0 0.60 ± 0.15 35.0 1.17 25
G5-0800 80.0 81.0 ± 3.0 0.65 ± 0.15 40.0 1.20 25
G5-0900 90.0 91.0 ± 3.0 0.75 ± 0.15 45.0 1.30 25
G5-1000 100 101.0 ± 3.0 0.75 ± 0.15 50.0 1.30 25
G5-1200 120 121.0 ± 4.0 0.80 ± 0.20 60.0 1.40 15
G5-1500 150 151.0 ± 4.0 0.80 ± 0.20 75.0 1.50 15
G5-1800 180 181.0 ± 4.0 0.85 ± 0.20 90.0 1.60 15
Technical Data
Property Specification Requirement Test Method Typical Value
Longitudinal change (150℃ , 3min) -10% ~ 10% ASTM D 2671 Pass
Tensile strength (500mm/min) ≧10.4MPa ASTM D 638 ≧11.4MPa
Elongation at break (500mm/min) ≧200% ASTM D 638 ≧400%
Tensile strength after aging (158℃ / 168 hrs.) More than 70% ASTM D 638 ≧80%
Elongation after aging (158℃ /168 hrs.) ≧100% ASTM D 638 ≧200%
Heat shock (200℃ /4 hrs.) No cracking ASTM D 2671 Pass
Cold bend (-30℃ /1 h.) No cracking ASTM D 2671 Pass
Dielectric voltage (AC2500V/60S) No breakdown UL224 Pass
Volume resistance ≧1014 Ω.cm ASTM D 876 ≧1014 Ω.cm
Dielectric strength ≧19.7 KV/mm ASTM D 2671 22 KV/mm
Flammability Pass UL224 Pass
Characteristics
  • Shrinkage Ratio: 2:1
  • Very flexible, highly flame retardant
  • Resistant to common fluids and solvents
  • Excellent physical, chemical, and electrical properties
  • Meet RoHS
