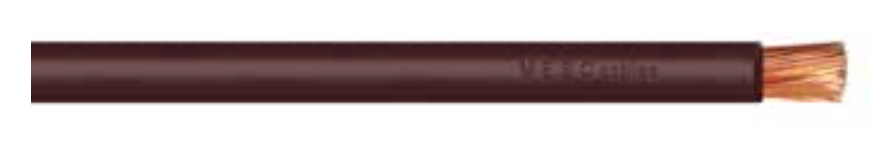

Flex PVC Insulated Non-Sheathed Single Core Cable (Flexible) 70°C & 90°C
MESC flexible PVC single core non-sheathed cable, Class 5 copper, rated 70°C & 90°C. 0.5–185mm². IEC 60227-2, BS EN 50525-2-31. H07V-K / H05V-K. UAE supplier.
MESC Flex PVC Insulated Non-Sheathed Single Core Cable uses Class 5 flexible copper conductors (per IEC 60228), making it ideal for applications requiring flexibility in lighting circuits, internal wiring of residential and commercial buildings, surface-mounted or embedded conduits, and earthing in fixed installations inside appliances, switchgear and control gear. Rated at 70°C (PVC TI 1) and 90°C (PVC TI 3). Also available at 105°C per UL standard. CENELEC codes: H07V-K (fixed wiring, 70°C), H07V2-K (fixed wiring, 90°C), H05V-K (internal wiring, 70°C), H05V2-K (internal wiring, 90°C).
| Specification | Details |
|---|---|
| Conductor | Plain Annealed Flexible Copper Class 5 per IEC 60228 |
| Sizes | 0.5–185mm² |
| Insulation | 0.6mm (small) to 2.0mm (185mm²) |
| Overall Dia | 2.2mm (0.5mm²) to 21.9mm (185mm²) |
| Weight | 9 kg/km to 1964 kg/km |
| Conductor Resistance at 20°C | 39.0 Ω/km (0.5mm²) to 0.106 Ω/km (185mm²) |
| Current Capacity (30°C, 1-phase) | 17A (1mm²) to 405A (185mm²) |
| Ambient correction | 0.94@35°C, 0.87@40°C, 0.79@45°C, 0.71@50°C, 0.61@55°C, 0.50@60°C, 0.35@65°C |
| Min. Bending Radius | 6 x overall diameter |
| Flame Retardant | IEC 60332-1 |
| Available Sizes / Core Configurations | 0.5, 0.75, 1.0, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185 mm² |
| Conductor Type | Plain Annealed Flexible Copper – Class 5 per IEC 60228 |
| Insulation | PVC Type TI 1 (70°C) or PVC Type TI 3 (90°C) per BS EN 50363-3 |
| Sheath / Outer Jacket | None (Non-Sheathed) |
| Voltage Rating | 300/500 V (up to 1.0mm²) 450/750 V (1.5mm² and above) |
| Standard / Compliance | BS EN 50525-2-31, IEC 60227-2, IEC 60332-1 |
| Color Code | Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green/Yellow (other colors on request) |
| Standard Packing | Coil / Reel / Drum in Metres, Yards or Feet (custom lengths available) |
| Typical Applications | Flexible indoor wiring, lighting circuits, conduit installation, switchgear & appliance internal wiring, DC earth connections |
