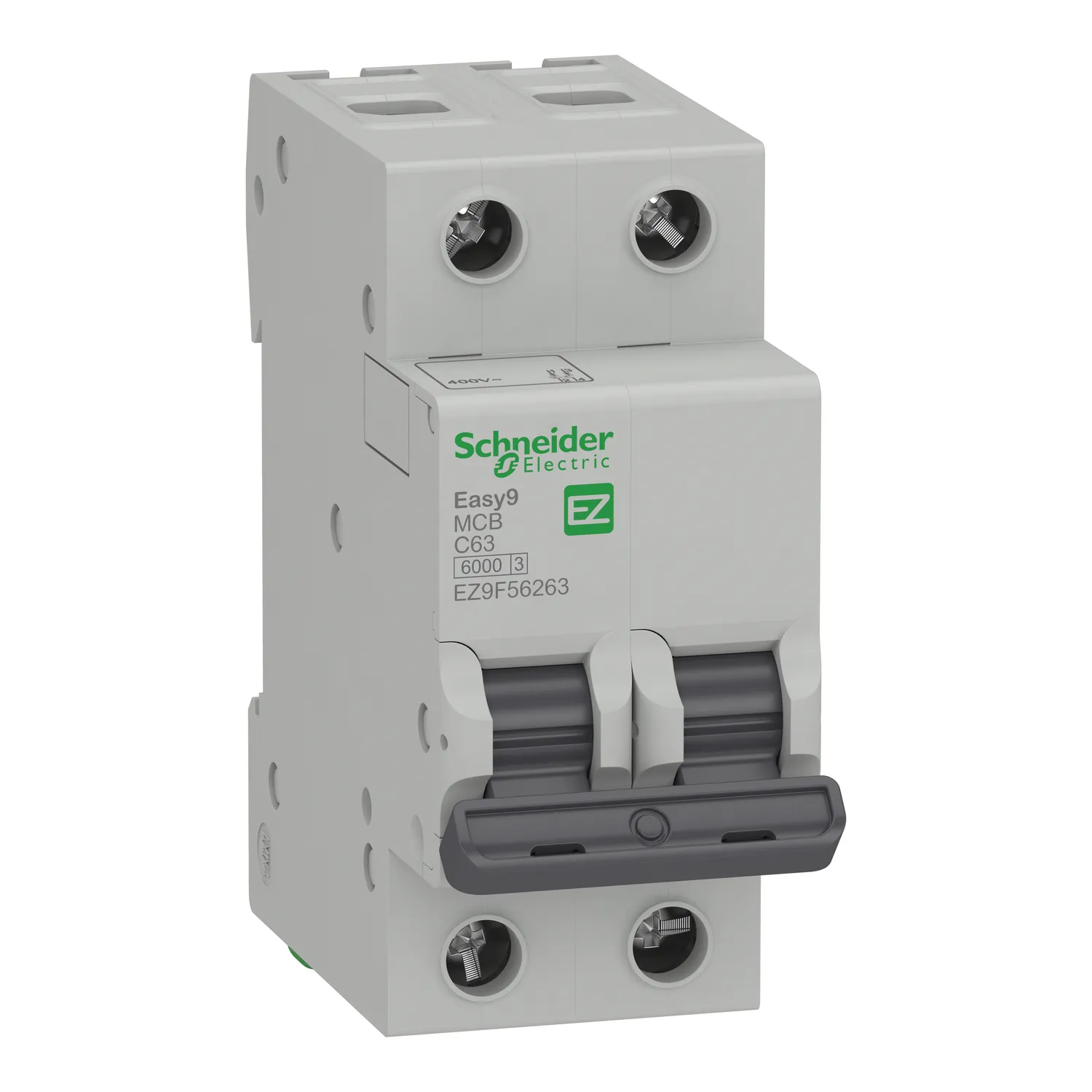

EZ9F56263
Residential Buildings, Commercial Complexes, Office Buildings, Retail Stores, Hotels, Hospitals, Schools, Apartment Buildings, Villas, Consumer Units, Distribution Boards, Final Circuit Protection, Lighting Circuits, Power Circuits, Socket Outlets, Air Conditioning, Water Heaters, Electric Ovens, Washing Machines, General Purpose Circuits
Schneider Electric EZ9F56263 Easy9 OTHER | 2 Poles 63A Rated Current | Type C Curve | 6kA / 6000A Breaking Capacity | 230V AC | Easy9 Series Budget-Friendly MCB | Cost-Effective Circuit Protection | Residential Commercial Applications | DIN Rail Mount 18mm Pitch | BS EN 60898-1 IEC 60947-2 Standards | Conventional Busbar System | Tool-Free Installation | Compact Design Space-Saving | Tunnel Terminal Connections | IP20 Protection Degree | Short Circuit Overload Protection | Modern Consumer Unit Compatible | Easy Installation Maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EZ9F56263 |
| Brand | Schneider Electric |
| Series | Easy9 |
| Product Type | OTHER |
| Poles | 2 Poles (2P) |
| Rated Current In | 63A |
| Tripping Curve | Type C Curve |
| Breaking Capacity Icn/Icu | 6kA / 6000A |
| Rated Voltage | 230V AC |
| Standards | BS EN 60898-1, IEC 60947-2 |
| Mounting | DIN rail 35mm |
| Pitch | 18mm (2 modules per pole) |
| Protection | IP20 |
| Terminal | Tunnel type 1-35mm² |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000 operations |
| Electrical Life | 10,000 operations |
| Frequency | 50/60Hz |
