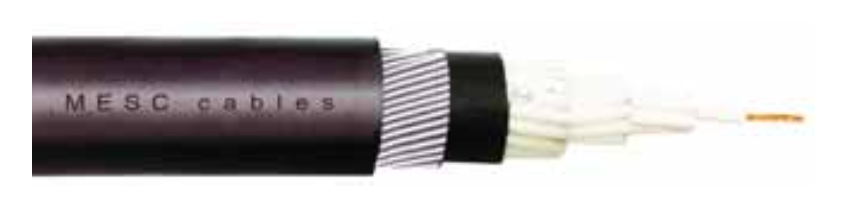

Control Multi Core Armoured Cable CU/XLPE/SWA/PVC – Black Numbered Cores – BS 5467
MESC CU/XLPE/SWA/PVC armoured control cable BS 5467, multi core (5+), black numbered cores, 600/1000V. Industrial control, panel wiring. UAE supplier.
MESC Control Multi Core Armoured Cable (CU/XLPE/SWA/PVC, BS 5467) is designed for power and control applications in indoor and outdoor environments including cable ducts, trays, conduits and underground under mechanical stresses. All cores are black with sequential number printing for easy identification in multi-core control applications. Cores assembled in concentric layers with suitable filler, wrapped with polyester tape. FR PVC bedding, single galvanized SWA, FR PVC Type 9 outer sheath. Rated 600/1000V, temperature range -5°C to 90°C. Minimum bending radius 6x overall diameter.
| Specification | Details |
|---|---|
| Conductor | Stranded Annealed Plain Copper Class 2 per IEC 60228 |
| Insulation | XLPE Type GP8 per BS 7655 1.2 |
| Color Code | Black cores with number printing |
| Inner Sheath | FR PVC Black |
| Armour | Single layer galvanized SWA |
| Outer Sheath | FR PVC Type 9 per BS 7655 4.2 – Black |
| Multi-core | (5+ cores, typically 7, 10, 12, 16, 19, 24+ cores) |
| Voltage | 600/1000 V |
| Temp | -5°C to 90°C |
| Min Bending Radius | 6x OD |
| Voltage Withstand | 3500 V AC (5 min) |
| Max SC Temp | 250°C (5 sec) |
| Available Sizes / Core Configurations | Multi core 5 cores and above (various conductor sizes available on request) |
| Conductor Type | Stranded Annealed Plain Copper – Class 2 per IEC 60228 |
| Insulation | XLPE Type GP8 per BS 7655 1.2 – 90°C |
| Sheath / Outer Jacket | FR PVC bedding (Black) + SWA + FR PVC Type 9 outer sheath (Black) |
| Voltage Rating | 600/1000 V |
| Standard / Compliance | BS 5467, BS 7655, IEC 60332-1 |
| Color Code | All cores: Black with number printing |
| Standard Packing | Drum; standard and custom lengths |
| Typical Applications | Industrial control systems, power station auxiliary wiring, panel-to-panel control cabling, metering, relay and protection systems, process control |
