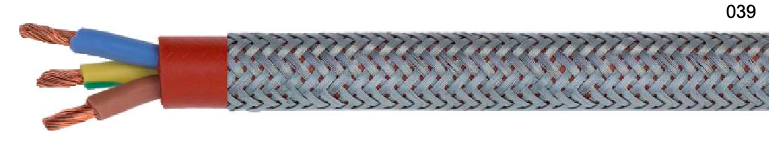

BLF Multicore Silicone Cable (SIH)
Plastic Forming and Molding, Plastic Processing Industries, Packaging Applications, Food Processing Industries, Refrigeration Equipment, Furnaces Industrial, Lighting Applications, Industrial Applications General, High Temperature Environments, Flexible Power Cables, Process Equipment, Heating Systems, Industrial Machinery, Food Industry Equipment, Pharmaceutical Equipment, Clean Room Applications, Temperature Monitoring Equipment, Multicore Flexible Applications
BLF SIH Multicore Silicone Rubber Cable | High Temperature 180/250°C Multicore Cable | Flexible Bare Tinned Nickel Coated Copper Conductors | Silicone Rubber Insulated Conductors External Sheath | Working Voltage 300/500V Test Voltage 2000V | With or Without External Armour Available | CE Certification RoHS REACH Compliant | Halogen Free Low Smoke LSZH | Brick Red Color | Plastic Forming Molding Packaging Food Processing | Refrigeration Furnaces Lighting Industrial Applications | EN50525 EN60228 EN50363 EN50395 EN50396 Standards | Various Combinations Armour Options | Established 1982 Modern Dynamic Efficient Company
Technical Specifications & Available Sizes
| Specification | Value |
|---|---|
| Product | Multicore Silicone Cable (SIH) |
| Brand | BLF srl (Established 1982) |
| Conductor | Flexible Conductor made of Bare, Tinned or Nickel Coated Copper |
| Insulation | Silicone Rubber |
| External Sheath | Silicone Rubber |
| Structure | Multicore cable with flexible conductors, insulation and external sheath made of Silicone Rubber in various combinations with or without external armour |
| Working Voltage | 300/500V |
| Test Voltage | 2000V |
| Temperature Range | 180/250°C |
| Standards | EN50525, EN60228, EN50363, EN50395, EN50396 |
| Certification | CE Certified, RoHS Compliant, REACH Compliant |
| Specification | Halogen Free, Low Smoke |
| Color | Brick Red |
| Available configurations | 3×0.50 – Conductor Ø0.90mm, Insulation 0.60mm, Sheath 0.80mm, External Ø6.00mm, Resistance 39.00Ω/km, Current 12.00A, Weight 56kg/km, 3×0.75 – Conductor Ø1.20mm, Insulation 0.60mm, Sheath 0.80mm, External Ø6.80mm, Resistance 26.00Ω/km, Current 15.00A, Weight 75.10kg/km, 2×1.00 – Conductor Ø1.30mm, Insulation 0.60mm, Sheath 0.80mm, External Ø6.60mm, Resistance 19.50Ω/km, Current 17.00A, Weight 68.60kg/km, 3×1.00 – Conductor Ø1.30mm, Insulation 0.60mm, Sheath 0.80mm, External Ø7.40mm, Resistance 19.50Ω/km, Current 17.00A, Weight 89.60kg/km, 4×1.00 – Conductor Ø1.30mm, Insulation 0.60mm, Sheath 1.00mm, External Ø8.00mm, Resistance 19.50Ω/km, Current 17.00A, Weight 108.90kg/km, 2×1.50 – Conductor Ø1.60mm, Insulation 0.60mm, Sheath 1.00mm, External Ø7.60mm, Resistance 13.30Ω/km, Current 23.00A, Weight 86.90kg/km, 3×1.50 – Conductor Ø1.60mm, Insulation 0.60mm, Sheath 1.00mm, External Ø8.00mm, Resistance 13.30Ω/km, Current 23.00A, Weight 108.45kg/km, 4×1.50 – Conductor Ø1.60mm, Insulation 0.60mm, Sheath 1.00mm, External Ø8.80mm, Resistance 13.30Ω/km, Current 23.00A, Weight 135.50kg/km, 3×2.50 – Conductor Ø2.00mm, Insulation 0.70mm, Sheath 1.20mm, External Ø9.70mm, Resistance 7.98Ω/km, Current 33.00A, Weight 172.90kg/km, 4×2.50 – Conductor Ø2.00mm, Insulation 0.70mm, Sheath 1.20mm, External Ø10.60mm, Resistance 7.98Ω/km, Current 33.00A, Weight 210.90kg/km, 5×2.50 – Conductor Ø2.00mm, Insulation 0.70mm, Sheath 1.20mm, External Ø11.60mm, Resistance 7.98Ø/km, Current 33.00A, Weight 258.30kg/km |
